Jenoptik to Exhibit Latest Products at LASER World of PHOTONICS CHINA

Posted Mar 12, 2018 by Jenoptik

Jenoptik’s Optical Systems division, in lieu of its decision to cater especially to laser material processing market in 2018, will be exhibiting at the upcoming LASER WORLD of PHOTONICS CHINA in Shanghai from March 14-16.

Jenoptik’s showcase at the event includes:

New Completely Fused Silica F-Theta Objective Lenses and New Standard F-Theta Lenses for High-Power Laser Applications

The new designs boast improved VIS performance for visual monitoring of the manufacturing process in a range of 1030 to 1080 nanometers. In the 500–680 nanometer range, lens transmission measures over 85 percent and enables direct process monitoring through a simple combination of image sensor and filter.

With a coating for 900 to 1100 nanometers instead of the previous 1030 to 1080 nanometers, the new Silverline lenses for the NIR range are especially suitable for the broader spectra that are typical of diode lasers. The lenses are suitable for the most common applications and are precisely tailored to the specific process characteristics in production, enabling customers to respond flexibly to production changes.

New Motorized Beam Expander Simplifies Production Steps in Laser Material Processing

The motorized beam expander 1x-8x focuses mainly on the critical parameters of time, quality, and ease of handling. As an ideal match for Jenoptik’s F-theta lenses, it is offered for wavelengths of 355 or 1030–1080 nanometers. The expansion can be continuously adjusted from 1x to 8x using software commands. In the manufacturing process, changing the expansion of the beam changes its spot size on the workpiece.

The beam can be adjusted to the optimum spot size during the ongoing manufacturing process, resulting in significantly higher quality and productivity for the user. The divergence of the laser beam can be precisely adjusted to achieve tolerance compensation in the entire system, for example to compensate for thermal effects. Controlling the divergence also makes it possible to change the position of the working plane, for instance for 3D processing. Both features – automatic magnification and focusing – help to reduce setup times. Thanks to an innovative frame concept the construction of the beam expanders is extremely compact and robust. The lenses do not rotate during focusing or magnification but are moved within a linear guide, resulting in excellent beam stability and constantly high quality. The optical system is designed in such a way that a diffraction-limited image quality is achieved across the entire expansion range. The optimized coatings ensure the highest transmission and minimal thermal effects in wavelength ranges of 355 and 1030–1080 nanometers.

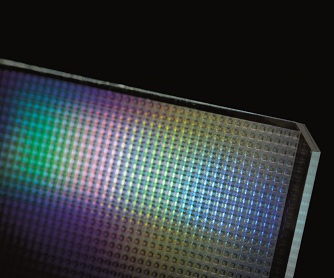

Enhanced Diffractive Optical Elements (DOEs)

Following the successful market introduction of the efficiency-enhanced Pulse Compression Gratings e2 in 2016, Jenoptik continues to pave the way to performance enhanced diffractive micro-optical elements to be used in industrial applications. The combination of thorough design and state-of-the-art manufacturing technologies, assures tailor-made control of light behavior through diffractive nanostructures. Decades of experience and dedicated know-how in micro-optics, support the customer to find his tailor-made diffractive solution.

In addition to structured light for inspection, augmented reality and biomedical applications, laser material processing is one of the main application field for the improved DOEs. Thanks to high uniformity, precise control of the diffraction orders, reduction of the zeroth diffraction order, Jenoptik’s beam shaper/ splitter are key elements to boost processes such as welding, dicing, ablating and drilling. Jenoptik extensive technologies portfolio enables the production of customized DOEs in small to high volumes, from UV to IR and from low to high power applications.

Click here to know more about LASER WORLD of PHOTONICS CHINA 2018.
