S11106-10

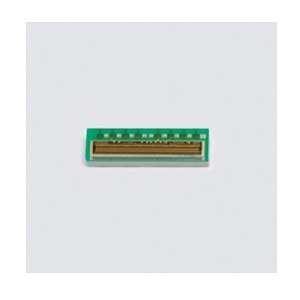

CMOS Image Sensor by Hamamatsu Photonics
Download Datasheet Request Quote

Note: Your Quotation Request will be directed to Hamamatsu Photonics.

The S11106-10 from Hamamatsu Photonics is a CMOS Image Sensor with Supply Voltage 3 to 5.25 V, Dynamic Range 2000 to 200000 times, Data Rate 10 MHz (Video), Sensitivity 80 V/(lx·s), Clock Frequency 5 kHz to 10 MHz. More details for S11106-10 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    S11106-10
  • Manufacturer
    Hamamatsu Photonics
  • Description
    Compact size and high cost-performance CMOS Linear Image Sensor

General Parameters

  • Resolution
    1 (H) x 128 (V)
  • Supply Voltage
    3 to 5.25 V
  • Pixel Size
    63.5 µm x 63.5 µm
  • Dynamic Range
    2000 to 200000 times
  • Imaging Area
    8.06 mm (Length)
  • Type
    Linear Image Sensor
  • Data Rate
    10 MHz (Video)
  • Sensitivity
    80 V/(lx·s)
  • Clock Frequency
    5 kHz to 10 MHz
  • Note
    Spectral response range: 400 to 1000 nm

Applications

  • Application
    Position Detection, Object Measurement, Rotary Encoder, Image Reading

Physical Properties

  • Package
    Surface mount, Glass epoxy
  • Dimensions
    2.4 mm x 9.1 mm x 1.6 mm

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C
