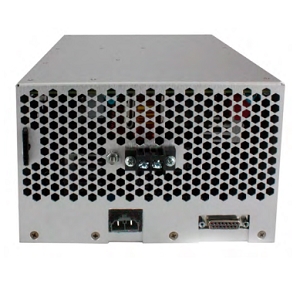

LDP-2000

Laser Diode Driver by Lumina Power, Inc.
Download Datasheet Request Quote

Note: Your Quotation Request will be directed to Lumina Power, Inc..

The LDP-2000 from Lumina Power, Inc. is a Laser Diode Driver with Operating Temperature 0 to 40 Degree C, Storage Temperature -20 to 85 Degree C, Compliance Voltage 200 V, Output Current 0 to 400 A, Pulse Width 50 µs. More details for LDP-2000 can be seen below.

Product Specifications View similar products

Product Details

  • Part Number
    LDP-2000
  • Manufacturer
    Lumina Power, Inc.
  • Description
    Pulsed/CW Laser Diode Drivers

Environmental Conditions

  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    -20 to 85 Degree C

Connections & Interface

  • Connector
    15 Pin “D” Sub Female

General Parameters

  • Operation Mode
    CW / Pulsed
  • Compliance Voltage
    200 V
  • Output Current
    0 to 400 A
  • Pulse Width
    50 µs
  • Output Voltage
    200 V
  • Input Voltage
    200 to 240 V AC ±10%, 50/60 Hz
  • Repetition Rate
    0 to 5 kHz
  • Supply Current
    0 to 400 A
  • Output Power
    2000 W
  • Rise Time
    10 us
  • Fall Time
    10 us
  • RoHs
    Yes
