APCL-635-01-XX-A

Laser by Arima Lasers

Note: Your Quotation Request will be directed to Arima Lasers.

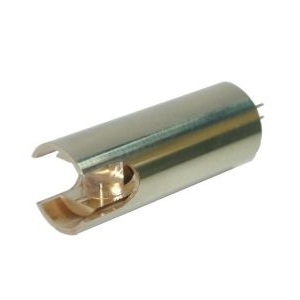

The APCL-635-01-XX-A from Arima Lasers is a Laser with Power 3 mW, Wavelength 630 to 640 nm, Output Power (CW) 3 mW, Operating Temperature -5 to 40 Degree C, Storage Temperature -40 to 75 Degree C. More details for APCL-635-01-XX-A can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    APCL-635-01-XX-A
  • Manufacturer
    Arima Lasers
  • Description
    F11.5mm 635nm Laser Line Generator

General Parameters

  • Configuration
    Laser Head with Control Unit (Integrated)
  • Type
    Laser module
  • Operation Mode
    CW Laser
  • Application
    Marking, Test & Measurement, Alignment, Laser Surveying
  • Power
    3 mW
  • Wavelength
    630 to 640 nm
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Output Power (CW)
    3 mW
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific Research, Environmental
  • Current
    30 to 60 mA
  • Power Supply
    3.3 V
  • Voltage
    3 to 3.3 V
  • Note
    Mean time to failure (MTTF): 5000 hrs

Physical Properties

  • Dimension
    11.7 x 30 mm(D x L)

Environmental Conditions

  • Operating Temperature
    -5 to 40 Degree C
  • Storage Temperature
    -40 to 75 Degree C

Technical Documents

Click to view more product details on manufacturer's website
