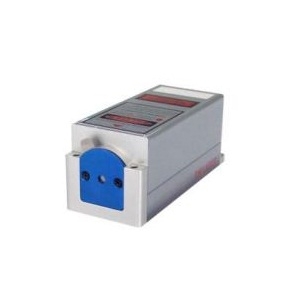

MBL-S-473

Laser by CNI Laser
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to CNI Laser.

The MBL-S-473 from CNI Laser is a Laser with Wavelength 473 nm, Power 0.001 to 0.1 W, Output Power (CW) 0.001 to 0.1 W, Operating Temperature 10 to 35 Degree C. More details for MBL-S-473 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MBL-S-473
  • Manufacturer
    CNI Laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Medical, Scientific / Research, Entertainment
  • Application
    Medical Imaging, Imaging, Laser Surgery, Metrology, Microscopy, Laser Projectors, Laser Light Shows
  • Operation Mode
    CW Laser
  • Wavelength
    473 nm
  • Wavelength Accuracy
    ±1 nm
  • Power
    0.001 to 0.1 W
  • Output Power (CW)
    0.001 to 0.1 W
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Blue
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1.5 mrad
  • Warm up time
    5 Minutes
  • Power Stability
    1%, 3%, 10%
  • Power Supply
    90 to 264 VAC
  • RoHS
    Yes
  • Warranty
    1 year
  • Note
    Beam Height: 19 mm

Physical Properties

  • Weight
    0.41 kg
  • Beam Diameter
    0.7±0.05 mm

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C
