UltraFlux FT031k

Laser by EKSPLA

Note: Your Quotation Request will be directed to EKSPLA.

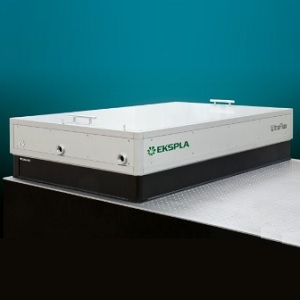

The UltraFlux FT031k from EKSPLA is a Tunable Femtosecond Laser System with a wavelength from 700 to 1010 nm. It delivers an output pulse energy of up to 300 µJ with a pulse duration of 35-60 fs and a repetition rate of up to 1 kHz. This linearly/horizontally polarised laser system provides a Gaussian beam with a diameter of 2 mm and has beam-pointing stability of up to 1.5% RMS for over 12 hours.

The UltraFlux FT031k is based on the novel OPCPA (Optical Parametric Chirped Pulse Amplification) technology that uses a picosecond fiber laser for seeding both the picosecond DPSS pump laser and femtosecond parametric amplifier by spectrally broadening the output. This eliminates the need for pump and seed pulse synchronization and also increases the contrast of the output pulses in the picosecond to the nanosecond time scale. It is available in a module that measures 1.20 x 0.75 m and is suitable for high harmonic generation, non-linear spectroscopy, femtosecond pump-probe spectroscopy, broadband CARS, and SFG applications.

Product Specifications

View similar products

Product Details

  • Part Number
    UltraFlux FT031k
  • Manufacturer
  • Description
    Tunable Femtosecond Laser System from 700 to 1010 nm

General Parameters

  • Configuration
    Laser Head with Control Unit (Integrated)
  • Type
    Laser System
  • Technology
    DPSS Laser
  • Operation Mode
    Pulsed Laser
  • Application
    Spectroscopy, Spectrum Analysis, Pumping Source
  • Wavelength
    700 to 1010 nm
  • Ultrafast Laser
    Femtosecond Lasers
  • Tunable
  • Laser Color
    Visible, Near-Infrared
  • Pulse Width
    35 to 60 fs
  • Pulse Energy :
    300 uJ
  • Polarization
    Horizontal, Linear
  • Gain Medium Type
    Solid State Laser
  • Application Industry
    Scientific Research
  • Repetition Rate
    1 kHz
  • Laser Class
    Class 4
  • Energy Stability
    < 1.5 %, rms
  • Power Stability
    < 1.5 %, rms
  • Pointing Stability :
    < 50 µrad, rms
  • Note
    Based on the novel OPCPA (Optical Parametric Chirped Pulse Amplification) technology

Physical Properties

  • Dimension
    1.2 × 0.75 m
  • Beam Diameter
    2 mm
