LEDSW40

LED by Thorlabs Inc
Download Datasheet Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The LEDSW40 from Thorlabs Inc is a LED with Current 150 mA, Forward Voltage 3.5 to 3.7 V, Forward Current 180 mA, Power 115 mW, Reverse Voltage 5 V. More details for LEDSW40 can be seen below.

Product Specifications View similar products

Product Details

  • Part Number
    LEDSW40
  • Manufacturer
    Thorlabs Inc
  • Description

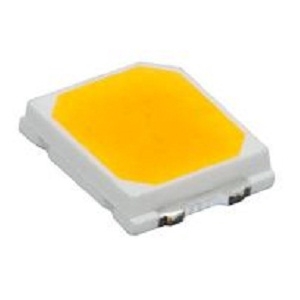

    White LED in SMT Package, 4000 K, 115 mW, Qty. 20

General Parameters

  • Angle of Half Intensity
    50 Degree
  • Chip Technology
    GaN-based
  • Colors
    White
  • Configuration
    Emitter
  • Correlated color temperature (CCT)
    4000K
  • CRI
    90
  • RoHS
    Yes
  • Viewing Angle
    50 Degree
  • Current
    150 mA
  • Forward Voltage
    3.5 to 3.7 V
  • Forward Current
    180 mA
  • Power
    115 mW
  • Reverse Voltage
    5 V
  • Note
    Lifetime: >25 000 hrs

Physical Properties

  • Package Type
    Surface mount
  • Size
    emiter size: 2.6 x 3.2 mm

Environmental Conditions

  • Operating Temperature
    -30 to 80 Degree C
  • Storage Temperature
    -30 to 85 Degree C

Applications

  • Application
    OEM Applications
