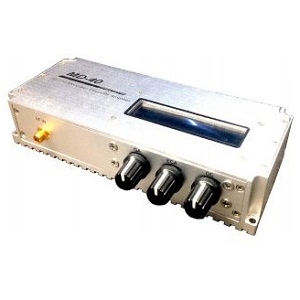

MD-40

Optical Modulator Driver by Optilab
Download Datasheet Request Quote

Note: Your Quotation Request will be directed to Optilab.

The MD-40 from Optilab is a Optical Modulator Driver with Data Rate 40 Gb/s, Gain 30 dB, Rise/Fall Time Rise Time: 12 ps typ, Output Voltage/Amplitude 7.5 Vp-p, Differential/Input Voltage 1.5 V. More details for MD-40 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MD-40
  • Manufacturer
    Optilab
  • Description
    40 GHz Modulator Driver/RF Amplifier

Temperature

  • Operating Temperature display
    -20 to 60 Degree C
  • Storage Temperature
    -45 to 90 Degree C

Physical Properties

  • Package Size
    160 mm x 65 mm x 32.5 mm

Applications

  • Applications
    Amplifier RF over Fiber link, Analog RF amplification to 38 GHz, 40 Gb/s digital modulation, OC 768 system, General laboratory testing

General Parameters

  • Data Rate
    40 Gb/s
  • Gain
    30 dB
  • Rise/Fall Time
    Rise Time: 12 ps typ
  • Package Type
    Module with Connectors
  • Output Voltage/Amplitude
    7.5 Vp-p
  • Differential/Input Voltage
    1.5 V
  • Supply Voltage
    12 VDC, 1A
  • Input Impedance
    50 Ohms
  • Bandwidth
    32 GHz
  • Noise Figure
    6 dB
  • Small Signal Gain
    30 dB
  • Frequency
    30 KHz to 38 GHz
  • Input Return Loss
    10 dB
  • Group Delay
    25 ps
  • RF Connector
    K Connector Female, AC Coupled(Input/Output Connector)
  • Saturated Power
    21.5 dBm
  • Output Return Loss
    10 dB
  • P1dB
    21 dBm
  • Power Dissipation
    2.5 W
