Spectrometer by Ocean Insight

Note: Your Quotation Request will be directed to Ocean Insight.

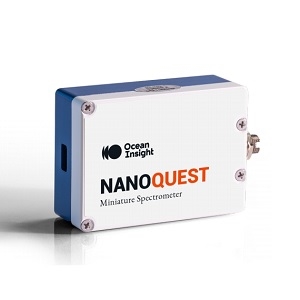

The NanoQuest from Ocean Insight is a NIR Spectrometer that operates from 1350 to 2500 nm. It has an optical resolution of 8 or 16 nm FWHM and a scan rate that provides experiment stability. The spectrometer has wavenumber from 7400 to 4000 cm-1 and has a signal to noise ratio of more than 3000:1. The sensor’s patented micro-electro-mechanical systems (MEMS) technology allows for a continuous-wave Michelson interferometer which can be created monolithically on a MEMS chip and is based on  Fourier Transform Infrared Technology. The device supports a USB 2.0 interface and exhibits great tolerance to motion effects. It requires a supply of 5 V and consumes 750 mW of power.

NanoQuest comes with an optical fiber and operating software and can be coupled to Ocean Insight light sources and accessories to configure systems for absorbance/transmission or reflectance measurements. The device provides extended NIR spectral range and uses single-photodetector design to reduce instrument footprint and maintain low-noise, high-stability performance. It is available in a compact, affordable package and measures 70 x 50 x 25 mm with FC/PC input fiber connector. The device is ideal for authentication, food, and agriculture, and life sciences, and biomedical applications.

Product Specifications View similar products

Product Details

  • Part Number
  • Manufacturer
    Ocean Insight


  • Applications
    Authentication, Food and agricultural products quality inspectionMedical imaging, Life Science, Biomedical applications

Connections & Interface

  • Connector
  • Interface
    USB 2.0

General Parameters

  • Measuring Techniques
    NIR Spectroscopy, IR Spectroscopy
  • Spectrometer Type
  • Wavelength Range
    1350 to 2500 nm
  • Spectral Resolution
    8 nm or 16 nm
  • Spectrum Band
  • Noise Ratio
    >3000:1 transmission @ 2 second scan time, >1000:1 reflection @ 2 second scan time
  • Note
    Wavenumber range: 7400-4000 cm-1


  • Operating Temperature display
    -5 to 40 Degree C

Physical Properties

  • Weight
    120 g
  • Dimension
    70 mm x 50 mm x 25 mm

Technical Documents

Click to view more product details on manufacturer's website
