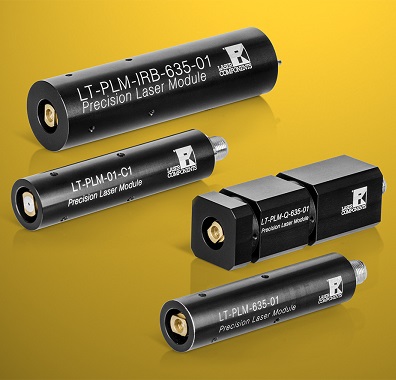

LASER COMPONENTS has added two new additions to its portfolio of high-precision alignment lasers: LT-PLM-635-01-C1 and LT-PLM-IRB-635-01-C1. At the exit point, the beams of these precision modules feature diameters of 1 mm and a squint angle of just 0.05 mrad.

The small exit diameter also produces an exceptionally small dot on the target area allowing for very precise positioning. Due to its higher divergence, its use is recommended at distances of up to 3 m. For longer distances, we recommend using our standard version with a beam diameter of 4.5 mm. Both profiles are available in 24 mm housings with M12 connections or as a mobile version with an integrated battery in 35 mm housing.

The so called “squint angle” defines the aberration of the laser beam from the central axis of the housing. This effect can be watched by putting the laser module on a plane surface and rotating it along its longitudinal axis. The laser spot will then move in a circle on the wall. Usually, the laser is positioned so it hits the target at the desired location. Precision modules are used whenever a target spot has to be aligned to a straight axis.
