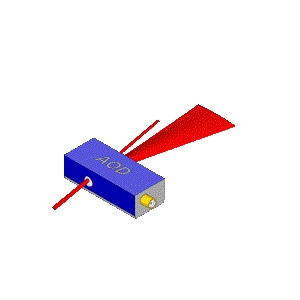

D110-T100S-4

Acousto-Optic Deflector by ISOMET

Note: Your Quotation Request will be directed to ISOMET.

The D110-T100S-4 from ISOMET is a Acousto-Optic Deflector with Scan Angle 4.5 to 5.9 Degree, Acoustic Velocity 0.617 mm/µs, Beam Separation Angle 2.3 to 2.9 Degree, Diffraction Efficiency 70 to 75%, Operating Wavelength 488 nm, 515 nm, 532 nm, 633 nm. More details for D110-T100S-4 can be seen below.

Product Specifications

Product Details

  • Part Number
    D110-T100S-4
  • Manufacturer
    ISOMET
  • Description
    633 nm, TeO2 Crystal Material Acousto Optic Deflector with a 75% Diffraction Efficiency

Optical Specifications

  • Scan Angle
    4.5 to 5.9 Degree
  • Aperture
    4 x 14 mm (H x W)
  • Output Polarization
    Circular
  • Polarization
    Linear
  • Acoustic Mode
    Shear
  • Acousto-Optic Material
    Tellurium Dioxide (TeO2)
  • Optical Power Handling
    10 W
  • Spectrum Band
    Visible
  • Acoustic Velocity
    0.617 mm/µs
  • Beam Separation Angle
    2.3 to 2.9 Degree
  • Diffraction Efficiency
    70 to 75%
  • Operating Wavelength
    488 nm, 515 nm, 532 nm, 633 nm

Electrical Specifications

  • Frequency
    75 to 125 MHz
  • Input Impedance
    50 Ohms
  • Input Polarization
    Linear
  • Insertion Loss
    <5%
  • Center Frequency
    100 MHz
  • RF Bandwidth
    50 MHz
  • RF Power
    0.85 to 1.2 W

Other Specifications

  • Access Time
    22.7 µs
