D1346(M)-aQ80-6

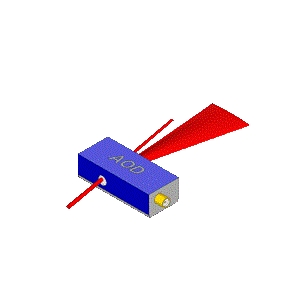

Acousto-Optic Deflector by ISOMET
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to ISOMET.

The D1346(M)-aQ80-6 from ISOMET is a Acousto-Optic Deflector with Scan Angle 4.67 mrad, Acoustic Velocity 5.7 mm/µs, Beam Separation Angle 14.9 mrad, Bragg Angle 7.47 mrad, Operating Wavelength 1064 nm. More details for D1346(M)-aQ80-6 can be seen below.

Product Specifications

Product Details

  • Part Number
    D1346(M)-aQ80-6
  • Manufacturer
    ISOMET
  • Description
    1064 nm, Quartz Crystal Material Acousto Optic Deflector with a 80% Diffraction Efficiency

Optical Specifications

  • Scan Angle
    4.67 mrad
  • Aperture
    6 x 14 mm
  • Clear Aperture
    9 x 18 mm (H x L)
  • Polarization
    Vertically Polarized
  • Acousto-Optic Material
    Quartz
  • Optical Power Handling
    500 W
  • Spectrum Band
    Near Infrared
  • Acoustic Velocity
    5.7 mm/µs
  • Beam Separation Angle
    14.9 mrad
  • Bragg Angle
    7.47 mrad
  • Operating Wavelength
    1064 nm

Electrical Specifications

  • Frequency
    67.5 to 92.5 MHz
  • Input Impedance
    50 Ohms
  • Insertion Loss
    <3%
  • Reflectivity
    <0.5%
  • Resolution
    17 resolvable spots >1000 non-resolvable points
  • VSWR
    <1.50:1
  • Center Frequency
    80 MHz
  • RF Bandwidth
    25 MHz
  • RF Power
    50 to 70 W

Other Specifications

  • Access Time
    0.7 µs
  • Cooling Method
    Water Cooling
  • Water Cooling
    1 L/minute
