STBR-TEAF_-.40-.65

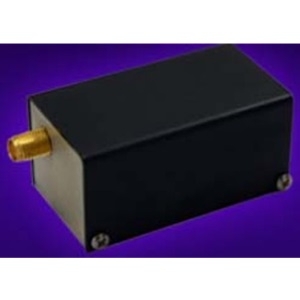

Acousto-Optic Tunable Filter by Sintec Optronics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sintec Optronics.

The STBR-TEAF_-.40-.65 from Sintec Optronics is a Acousto-Optic Tunable Filter with Wavelength Range 400 to 650 nm, RF Frequency Range 110 to 220 MHz (Drive), Resolution 0.5 to 5.1 nm, Diffraction Efficiency 70 to 90%, Spectral Range 400 to 650 nm. More details for STBR-TEAF_-.40-.65 can be seen below.

Product Specifications

Product Details

  • Part Number
    STBR-TEAF_-.40-.65
  • Manufacturer
    Sintec Optronics

Applications

  • Applications
    Industrial, Spectroscopy

General Parameters

  • Filter Type
    Non-Collinear, Dynamic Tunable Bandpass Filter
  • Wavelength Range
    400 to 650 nm
  • RF Frequency Range
    110 to 220 MHz (Drive)
  • Resolution
    0.5 to 5.1 nm
  • Substrate/Material
    Tellurium Dioxide (TeO2)
  • Fiber Type
    Free Space
  • Acceptance Angle
    3.4 to 6.2 Degree
  • Active Aperture
    5 x 5 mm
  • Configuration
    Electrically Controlled
  • Diffraction Efficiency
    70 to 90%
  • Spectral Range
    400 to 650 nm
