55-580

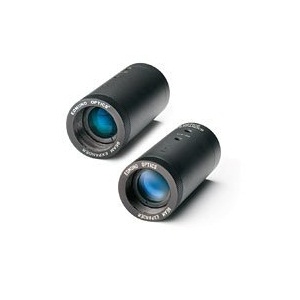

Beam Expander by Edmund Optics

Note: Your Quotation Request will be directed to Edmund Optics.

The 55-580 from Edmund Optics is a Beam Expander with Beam Expander Diameter 50 mm. More details for 55-580 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    55-580
  • Manufacturer
    Edmund Optics
  • Description
    5X Rear Accessory Attachment

General Parameters

  • Beam Expander Type
    Fixed Power HeNe Beam Expanders
  • Magnification
    5x, Beam Expander Front Assembly Required
  • Entrance Aperture(Input)
    2 mm
  • Substrate/Material
    MgF2
  • Reflection(%)
    λ/2 MgF2 @ 632.8 nm
  • Beam Expander Diameter
    50 mm
  • Coating Material
    MgF2
  • Housing Material
    Black Anodized Aluminum
  • Mounting Thread
    C-Mount
  • Housing Diameter
    50 mm
  • Note
    Focal Length: 1.2 m - Infinity
