58-273

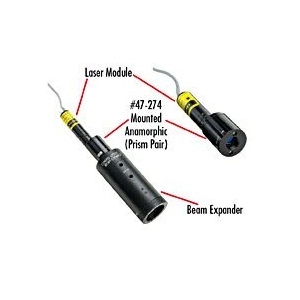

Beam Expander by Edmund Optics

Note: Your Quotation Request will be directed to Edmund Optics.

The 58-273 from Edmund Optics is a Beam Expander with Beam Expander Diameter Housing Diameter: 50 mm. More details for 58-273 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    58-273
  • Manufacturer
    Edmund Optics
  • Description
    4X Back-End, Diode Beam Expander

General Parameters

  • Beam Expander Type
    Laser Diode Beam Expanders
  • Magnification
    4x
  • Reflection(%)
    Ravg =0.6% @ 450 - 750 nm
  • Beam Expander Diameter
    Housing Diameter: 50 mm
  • Coating Material
    VIS
  • Housing Material
    Black Anodized Aluminum
  • Mounting Thread
    Male M14 x 0.5 Thread
  • Transmitted Wavefront Distortion
    λ/4 @ 633 - 670 nm
  • Housing Diameter
    50 mm
