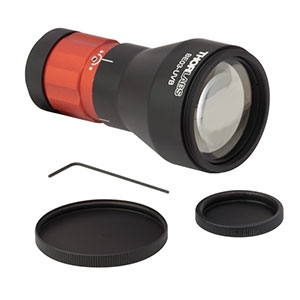

BE03-UVB

Beam Expander by Thorlabs Inc
51 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The BE03-UVB from Thorlabs Inc is a Beam Expander with Wavelength 240 to 360 nm, Beam Expander Diameter Enterance Beam Diameter: 10.6 mm. More details for BE03-UVB can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BE03-UVB
  • Manufacturer
    Thorlabs Inc
  • Description
    3X UVFS High-Power Beam Expander, AR Coated for 240 - 360 nm

General Parameters

  • Beam Expander Type
    Fixed Magnification UVFS (Sliding Lens)
  • Wavelength
    240 to 360 nm
  • Magnification
    3x
  • Substrate/Material
    UV Fused Silica
  • Reflection(%)
    1.5% (240 - 360 nm)
  • Transmission(%)
    1.5%
  • Entrance Beam Diameter
    10.6 mm
  • Beam Expander Diameter
    Enterance Beam Diameter: 10.6 mm
  • Mounting Thread
    Mounting thread: External: SM1, Thread (M2): M43 x 0.5c
  • RoHS
    Yes
