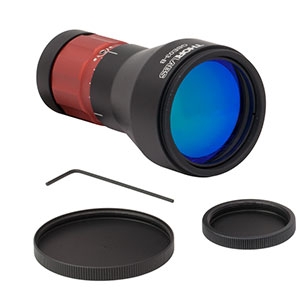

GBE03-B

Beam Expander by Thorlabs Inc
51 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The GBE03-B from Thorlabs Inc is a Beam Expander with Wavelength 650 to 1050 nm, Beam Expander Diameter Enterance Beam Diameter: 10.6 mm. More details for GBE03-B can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    GBE03-B
  • Manufacturer
    Thorlabs Inc
  • Description
    3X Achromatic Galilean Beam Expander, AR Coated: 650 - 1050 nm

General Parameters

  • Beam Expander Type
    Fixed Magnification Achromatic (Sliding Lens)
  • Wavelength
    650 to 1050 nm
  • Magnification
    3x
  • Reflection(%)
    0.5%
  • Transmission(%)
    96%
  • Entrance Beam Diameter
    10.6 mm
  • Beam Expander Diameter
    Enterance Beam Diameter: 10.6 mm
  • Mounting Thread
    Mounting thread: External: SM1, Thread (M2): M43 x 0.5c
  • Transmitted Wavefront Distortion
    λ/4 at 633 nm
  • RoHS
    Yes
