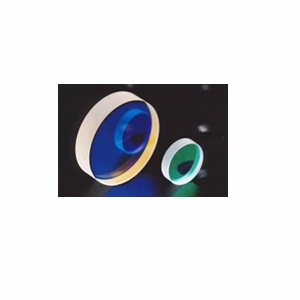

BSP1103

Beam Splitter by Foctek Photonics

Note: Your Quotation Request will be directed to Foctek Photonics.

The BSP1103 from Foctek Photonics is a Beam Splitter with Beamsplitter Thickness 2 mm, Wavelength Range 488 to 1500 nm. More details for BSP1103 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BSP1103
  • Manufacturer
    Foctek Photonics

Physical Properties

  • Construction
    Plate
  • Beamsplitter Dimension
    10 x 10 x 2 mm
  • Beamsplitter Thickness
    2 mm

General Parameters

  • Beamsplitter Type
    Plate Beamsplitters
  • Wavelength Range
    488 to 1500 nm
  • Split Ratio(%)
    50:50
  • Parallelism
    1 arc minute
  • Substrate/Material
    N-BK7
  • Surface Flatness
    λ/4 @ 632.8 nm
  • Surface Quality
    60-40 scratch-dig
  • Dimension Tolerance
    ±0.2 mm
  • Thickness Tolerance
    ±0.2 mm
