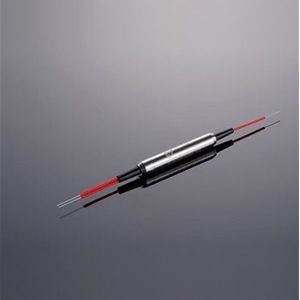

The HPBS-UF-06-P-1-01-222-L-1-0.8-P1 from LD-PD Inc is a Polarization Beam Splitter that operates at a wavelength of 1064 nm. It delivers a maximum average optical powers of 0.5 W, 1 W, 1.5 W & 2 W and has a peak power of 0.5 kW & 1 kW (for ps pulse). It has a wavelength accuracy of ± 20 nm and return loss of 50 dB. This beam splitter has an insertion loss of 0.6 dB & 0.7 dB or 0.8 dB & 0.9 dB (maximum) and directivity of up to 50 dB.

The HPBS-UF-06-P-1-01-222-L-1-0.8-P1 has a minimum extinction ratio of 22 dB & 20 dB (splitter) and polarization-dependent loss (PDL) of 20 dB (for HI1060 fiber). It can withstand a maximum tensile load of 5 N and supports PM 980 Panda fibers. This beam splitter is available in a package that measures Ø5.5 mm x 55 mm and is ideal for ultra-fast fiber lasers, coherent telecommunication systems, polarization mode dispersion compensator, EDFA & Raman amplifier & fiber optic sensor applications.
