PR 713

Beam Splitter by ORAFOL Fresnel Optics GmbH
4 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to ORAFOL Fresnel Optics GmbH.

The PR 713 from ORAFOL Fresnel Optics GmbH is a Beam Splitter with Beamsplitter Diameter 5 to 20 mm, Beamsplitter Thickness 1.8 mm. More details for PR 713 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PR 713
  • Manufacturer
    ORAFOL Fresnel Optics GmbH
  • Description

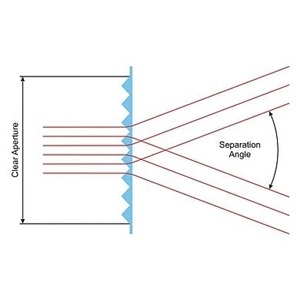

    51 Degrees Separation angle Fresnel Beamsplitter with 1.8 mm thickness

Physical Properties

  • Construction
    Prism
  • Beamsplitter Diameter
    5 to 20 mm
  • Beamsplitter Thickness
    1.8 mm

General Parameters

  • Beamsplitter Type
    Fresnel Beamsplitters
  • Beamsplitter Shape
    Rectangular
  • Angle of Incidence
    51 Degrees (Separation)
  • Clear Aperture
    340.1 x 269.2 mm2
  • Note
    Prism Angle: 45 Degrees, Facet Spacing: 0.305 mm, Prism Length: 340.1 mm
