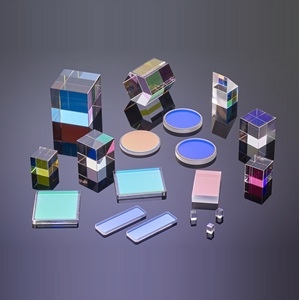

PPD-Beam Splitters

Request Quote

Note: Your Quotation Request will be directed to Perkins Precision Developments.

The PPD-Beam Splitters from Perkins Precision Developments is a Beam Splitter with Beamsplitter Diameter 1.5 mm, 2 mm. More details for PPD-Beam Splitters can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PPD-Beam Splitters
  • Manufacturer
    Perkins Precision Developments
  • Description
    1.5 to 2 mm Beam Splitters with 90 to 100% Clear Aperture

Physical Properties

  • Beamsplitter Diameter
    1.5 mm, 2 mm

General Parameters

  • Beamsplitter Type
    Laser Line Beamsplitters, Cube Beamsplitters, Plate Beamsplitters, Polarizing Beamsplitters, Non-Polarizing Beamsplitters
  • Beamsplitter Shape
    Cube
  • Reflection(%)
    >99.9%
  • Transmission(%)
    >95%
  • Transmitted Wavefront Error
    λ/10, λ/50 (Distortion)
  • Wedge Angle Tolerance
    <30 arcsec
  • Coating Material
    AR Coating
  • Angle of Incidence
    0 Degree, 45 Degree
  • Clear Aperture
    90%
  • RoHs
    Yes
  • Surface Flatness
    λ/10
  • Surface Quality
    10-5 scratch-dig
  • Diameter Tolerance
    +0.0/-0.1 mm
  • Thickness Tolerance
    ±0.1 mm
  • Note
    AR Coating: <0.05%, <0.2%
Click to view more product details on manufacturer's website
