PBC

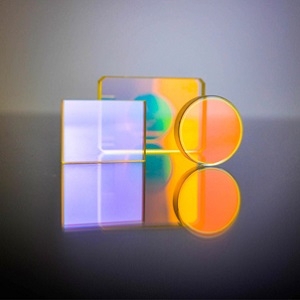

Beam Splitter by Rainbow Research Optics, LLC
10 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Rainbow Research Optics, LLC.

The PBC from Rainbow Research Optics, LLC is a Beam Splitter with Wavelength Range 633 nm. More details for PBC can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PBC
  • Manufacturer
    Rainbow Research Optics, LLC
  • Description
    20-10 scratch-dig Surface Quality Polarizing Cube Beamsplitters

General Parameters

  • Beamsplitter Type
    Cube Beamsplitters
  • Beamsplitter Shape
    Cube
  • Wavelength Range
    633 nm
  • Beam Deviation
    <3 arcmin
  • Reflection(%)
    >99.8% (Rs)
  • Transmission(%)
    95% (Tp)
  • Extinction Ratio
    >100:1 (Tp/Ts)
  • Coating Material
    AR Coating
  • Clear Aperture
    >85%
  • Substrate/Material
    UV Fused Silica, BK7
  • Surface Flatness
    λ/4 (Figure)
  • Surface Quality
    20-10 scratch-dig
  • Diameter Tolerance
    +0.0/-0.25 mm
  • Thickness Tolerance
    ±0.25 mm
  • Note
    Damage Threshold: 100 mJ/cm2, AR Coating: <0.25%
