TS-0721P2

Beam Splitter by Sugitoh
29 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Sugitoh.

The TS-0721P2 from Sugitoh is a Beam Splitter with Wavelength Range 400 to 700 nm. More details for TS-0721P2 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TS-0721P2
  • Manufacturer
    Sugitoh
  • Description

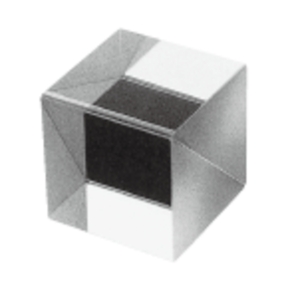

    400 to 700 nm Cube Beamsplitters with 35 x 35 x 35 mm Size

Physical Properties

  • Beamsplitter Dimension
    35 x 35 x 35 mm

General Parameters

  • Beamsplitter Type
    Cube Beamsplitters
  • Beamsplitter Shape
    Cube
  • Application
    Simultaneous observation, photography and observation
  • Wavelength Range
    400 to 700 nm
  • Reflection(%)
    0.5
  • Transmission(%)
    0.5
  • Split Ratio(%)
    50:50
  • Angle of Incidence
    45 Degree
  • RoHs
    Yes
  • Substrate/Material
    BK7
  • Surface Quality
    60-40 scratch-dig
  • Dimension Tolerance
    ±0.2 mm
  • Note
    Reflactive Index: 1.51680/nd, Wavefront aberration: λ/4, λ/2
