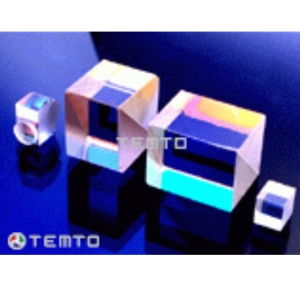

BSP0603

Beam Splitter by TEMTO Technology
51 more products from this company
Request Quote

Note: Your Quotation Request will be directed to TEMTO Technology.

The BSP0603 from TEMTO Technology is a Beam Splitter with Wavelength Range 488 nm, 514.5 nm, 532 nm, 632.8 nm, 635 nm, 670 nm, 780 nm, 850 nm, 980 nm, 1064 nm, 1300 nm, 1550 nm. More details for BSP0603 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BSP0603
  • Manufacturer
    TEMTO Technology
  • Description
    488 to 1550 nm Cube Beamsplitters with 20 mm Thickness

Physical Properties

  • Construction
    Cube
  • Beamsplitter Dimension
    25 x 25 x 25 mm

General Parameters

  • Beamsplitter Type
    Polarizing Beamsplitters, Cube Beamsplitters
  • Beamsplitter Shape
    Cube
  • Application
    Projection Optics Systems, Measurement, Imaging and Optical Display Systems
  • Wavelength Range
    488 nm, 514.5 nm, 532 nm, 632.8 nm, 635 nm, 670 nm, 780 nm, 850 nm, 980 nm, 1064 nm, 1300 nm, 1550 nm
  • Principal Reflectance(%)
    >99.5% (Rs), <5% (Rp)
  • Principal Transmittance(%)
    >90%(Tp), <0.2% (Ts)
  • Bevel/Chamfer
    <0.25 mm x 45 Degree
  • Extinction Ratio
    1000:1
  • Coating Material
    AR Coating
  • Clear Aperture
    >Central 80% of dimension
  • Parallelism
    <5 arcmin
  • Substrate/Material
    N-SF5
  • Surface Flatness
    λ/10
  • Surface Quality
    40-20 scratch-dig
  • Dimension Tolerance
    ±0.2 mm
