BP150

Beam Splitter by Thorlabs Inc
258 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The BP150 from Thorlabs Inc is a Beam Splitter with Beamsplitter Diameter I.D-25.4 mm(1 Inch), O.D-34.9 mm(1.38 Inch), Beamsplitter Thickness Frame Thickness 4.8 mm(3/16 Inch), Operating Temperature -40 to 70 Degree C, Wavelength Range 635 nm. More details for BP150 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BP150
  • Manufacturer
    Thorlabs Inc
  • Description

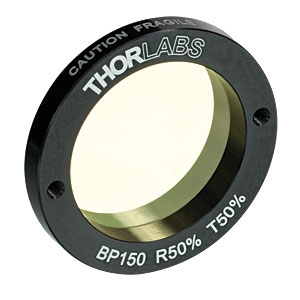

    Ø1" Pellicle Beamsplitter, Coated for 50:50 (R:T) Split Ratio at 635 nm

Physical Properties

  • Beamsplitter Diameter
    I.D-25.4 mm(1 Inch), O.D-34.9 mm(1.38 Inch)
  • Beamsplitter Thickness
    Frame Thickness 4.8 mm(3/16 Inch)

Temperature

  • Operating Temperature
    -40 to 70 Degree C

General Parameters

  • Beamsplitter Type
    Pellicle Beamsplitters
  • Beamsplitter Shape
    Round
  • Wavelength Range
    635 nm
  • Reflection(%)
    50%
  • Transmission(%)
    50%
  • Transmitted Wavefront Error
    λ/2
  • Split Ratio(%)
    50:50
  • Substrate/Material
    Nitrocellulose
  • Surface Quality
    40-20 Scratch-Dig
  • Note
    Index of Refraction:-1.5 (at 550 nm), Mounting Hole Spacing:-1.19" (30.2 mm)
