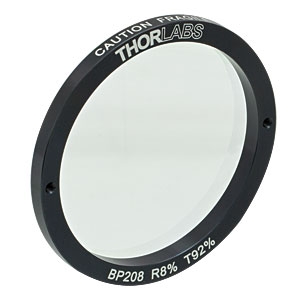

BP208

Beam Splitter by Thorlabs Inc
258 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The BP208 from Thorlabs Inc is a Beam Splitter with Beamsplitter Diameter I.D-50.8 mm(2 Inch), O.D-60.3 mm(2.38 Inch), Beamsplitter Thickness Frame Thickness 4.8 mm(3/16 Inch), Operating Temperature -40 to 70 Degree C, Wavelength Range 400 to 2400 nm. More details for BP208 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BP208
  • Manufacturer
    Thorlabs Inc
  • Description
    Ø2" Pellicle Beamsplitter, Uncoated for 8:92 (R:T) Split Ratio for 400-2400 nm

Physical Properties

  • Beamsplitter Diameter
    I.D-50.8 mm(2 Inch), O.D-60.3 mm(2.38 Inch)
  • Beamsplitter Thickness
    Frame Thickness 4.8 mm(3/16 Inch)

Temperature

  • Operating Temperature
    -40 to 70 Degree C

General Parameters

  • Beamsplitter Type
    Pellicle Beamsplitters
  • Beamsplitter Shape
    Round
  • Wavelength Range
    400 to 2400 nm
  • Reflection(%)
    8%
  • Transmission(%)
    92%
  • Transmitted Wavefront Error
    λ/2
  • Split Ratio(%)
    8:92
  • Substrate/Material
    Nitrocellulose
  • Surface Quality
    40-20 Scratch-Dig
  • Note
    Index of Refraction:-1.5 (at 550 nm), Mounting Hole Spacing:- 2.19" (55.6 mm)
