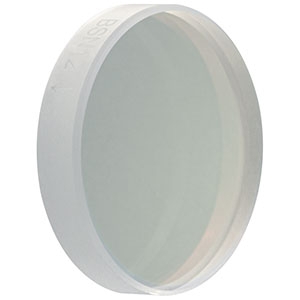

BSN12

Beam Splitter by Thorlabs Inc
258 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The BSN12 from Thorlabs Inc is a Beam Splitter with Beamsplitter Diameter 25.4 mm(1 Inch), Beamsplitter Thickness 5 mm, Wavelength Range 1200 to 1600 nm. More details for BSN12 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BSN12
  • Manufacturer
    Thorlabs Inc
  • Description
    Ø1" 10:90 (R:T) UVFS Plate Beamsplitter, Coating: 1.2 - 1.6 µm, t = 5 mm

Physical Properties

  • Construction
    Plate
  • Beamsplitter Diameter
    25.4 mm(1 Inch)
  • Beamsplitter Thickness
    5 mm

General Parameters

  • Beamsplitter Type
    Plate Beamsplitters, Non-Polarizing Beamsplitters
  • Beamsplitter Shape
    Round
  • Wavelength Range
    1200 to 1600 nm
  • Reflection(%)
    10%
  • Transmission(%)
    90%
  • Split Ratio(%)
    10:90
  • Split Ratio Tolerance
    ±5%
  • Wedge Angle Tolerance
    30 arcmin
  • Coating Material
    NIR
  • Angle of Incidence
    45 Degree
  • Substrate/Material
    UV Fused Silica
