BSW12R

Beam Splitter by Thorlabs Inc
258 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

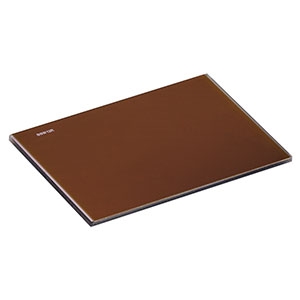

The BSW12R from Thorlabs Inc is a Beam Splitter with Beamsplitter Thickness 1 mm, Wavelength Range 1200 to 1600 nm. More details for BSW12R can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BSW12R
  • Manufacturer
    Thorlabs Inc
  • Description
    25 mm x 36 mm 50:50 UVFS Plate Beamsplitter, Coating: 1.2 - 1.6 µm, t = 1 mm

Physical Properties

  • Construction
    Plate
  • Beamsplitter Dimension
    25 x 36 mm
  • Beamsplitter Thickness
    1 mm

General Parameters

  • Beamsplitter Type
    Plate Beamsplitters, Non-Polarizing Beamsplitters
  • Beamsplitter Shape
    Rectangular
  • Wavelength Range
    1200 to 1600 nm
  • Reflection(%)
    50%
  • Transmission(%)
    50%
  • Split Ratio(%)
    50:50
  • Split Ratio Tolerance
    ±5%
  • Coating Material
    AR Coating
  • Angle of Incidence
    45 Degree
  • Clear Aperture
    90%
  • Substrate/Material
    UVFS Plate Beamsplitter
  • Surface Quality
    20-10 Scratch-Dig
  • Thickness Tolerance
    ±0.1 mm
