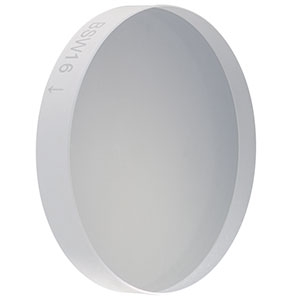

BSW16

Beam Splitter by Thorlabs Inc
258 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The BSW16 from Thorlabs Inc is a Beam Splitter with Beamsplitter Diameter 50.8 mm(2 Inch), Beamsplitter Thickness 8 mm, Wavelength Range 400 to 700 nm. More details for BSW16 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BSW16
  • Manufacturer
    Thorlabs Inc
  • Description
    Ø2" 50:50 UVFS Plate Beamsplitter, Coating: 400 - 700 nm, t = 8 mm

Physical Properties

  • Construction
    Plate
  • Beamsplitter Diameter
    50.8 mm(2 Inch)
  • Beamsplitter Thickness
    8 mm

General Parameters

  • Beamsplitter Type
    Plate Beamsplitters, Non-Polarizing Beamsplitters
  • Beamsplitter Shape
    Round
  • Wavelength Range
    400 to 700 nm
  • Reflection(%)
    50%
  • Transmission(%)
    50%
  • Split Ratio(%)
    50:50
  • Split Ratio Tolerance
    ±8%
  • Wedge Angle Tolerance
    30 arcmin
  • Coating Material
    BBAR
  • Angle of Incidence
    45 Degree
  • Substrate/Material
    UVFS Plate Beamsplitter
