CM05-BS017

Beam Splitter by Thorlabs Inc
258 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The CM05-BS017 from Thorlabs Inc is a Beam Splitter with Wavelength Range 700 to 1100 nm. More details for CM05-BS017 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CM05-BS017
  • Manufacturer
    Thorlabs Inc
  • Description

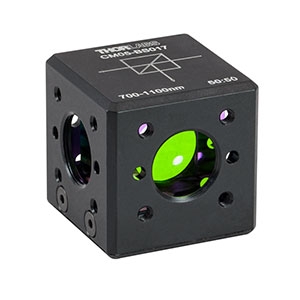

    16 mm Cage Cube-Mounted Non-Polarizing Beamsplitter, 700 - 1100 nm, 8-32 and M4 Adapters

Physical Properties

  • Construction
    Cube
  • Beamsplitter Dimension
    16 x 16 x 16 mm

General Parameters

  • Beamsplitter Type
    Cube Beamsplitters, Non-Polarizing Beamsplitters
  • Beamsplitter Shape
    Cube
  • Wavelength Range
    700 to 1100 nm
  • Beam Deviation
    90 Degree
  • Reflection(%)
    50%
  • Transmission(%)
    50%
  • Transmitted Wavefront Error
    λ/4
  • Split Ratio(%)
    50:50
  • Split Ratio Tolerance
    ±10%
  • Wedge Angle Tolerance
    5 arcmin
  • Angle of Incidence
    0 Degree
  • Clear Aperture
    12.5 mm
  • Substrate/Material
    N-BK7
  • Surface Flatness
    λ/10
  • Surface Quality
    40-20 Scratch-Dig
