CM05-PBS203

Beam Splitter by Thorlabs Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The CM05-PBS203 from Thorlabs Inc is a Beam Splitter with Wavelength Range 900 to 1300 nm. More details for CM05-PBS203 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CM05-PBS203
  • Manufacturer
    Thorlabs Inc
  • Description

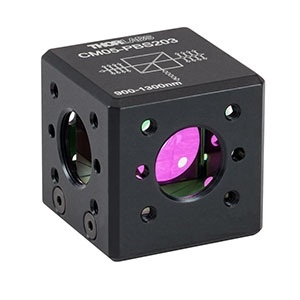

    16 mm Cage-Cube-Mounted Polarizing Beamsplitter Cube, 900-1300 nm, 8-32 and M4 Adapters

Physical Properties

  • Construction
    Cube
  • Beamsplitter Dimension
    16 x 16 x 16 mm

General Parameters

  • Beamsplitter Type
    Cube Beamsplitters, Polarizing Beamsplitters
  • Beamsplitter Shape
    Cube
  • Wavelength Range
    900 to 1300 nm
  • Beam Deviation
    90 Degree
  • Principal Reflectance(%)
    99.5%
  • Principal Transmittance(%)
    90%
  • Extinction Ratio
    Tp:Ts >1,000:1
  • Wedge Angle Tolerance
    5 arcmin
  • Angle of Incidence
    0 Degree
  • Clear Aperture
    12.5 mm
  • Substrate/Material
    N-SF1
  • Surface Flatness
    λ/4 @ 633 nm
  • Surface Quality
    40-20 Scratch-Dig
