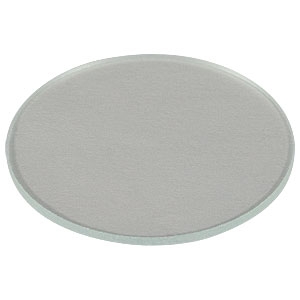

EBP1

Beam Splitter by Thorlabs Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The EBP1 from Thorlabs Inc is a Beam Splitter with Beamsplitter Diameter 25.4 mm(1 Inch), Beamsplitter Thickness 1 mm, Operating Temperature -50 to 80 Degree C, Wavelength Range 450 to 650 nm. More details for EBP1 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    EBP1
  • Manufacturer
    Thorlabs Inc
  • Description
    Economy 30:70 Beamsplitter, Ø1", AOI: 45°

Physical Properties

  • Construction
    Plate
  • Beamsplitter Diameter
    25.4 mm(1 Inch)
  • Beamsplitter Thickness
    1 mm

Temperature

  • Operating Temperature
    -50 to 80 Degree C

General Parameters

  • Beamsplitter Type
    Plate Beamsplitters
  • Beamsplitter Shape
    Round
  • Wavelength Range
    450 to 650 nm
  • Reflection(%)
    50%
  • Transmission(%)
    50%
  • Split Ratio(%)
    50:50
  • Split Ratio Tolerance
    ±10%
  • Angle of Incidence
    45 Degree
  • Clear Aperture
    90%
  • Substrate/Material
    Soda Lime Glass
  • Surface Quality
    80-50 Scratch-Dig
