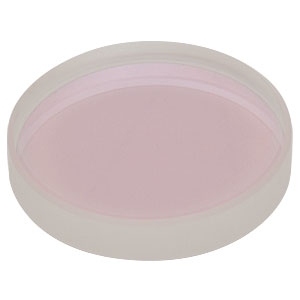

PBSW-1550

Beam Splitter by Thorlabs Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The PBSW-1550 from Thorlabs Inc is a Beam Splitter with Beamsplitter Diameter 25.4 mm(1 Inch), Beamsplitter Thickness 5 mm, Wavelength Range 1550 nm. More details for PBSW-1550 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PBSW-1550
  • Manufacturer
    Thorlabs Inc

Physical Properties

  • Construction
    Plate
  • Beamsplitter Diameter
    25.4 mm(1 Inch)
  • Beamsplitter Thickness
    5 mm

General Parameters

  • Beamsplitter Type
    Plate Beamsplitters, Polarizing Beamsplitters
  • Beamsplitter Shape
    Round
  • Wavelength Range
    1550 nm
  • Transmitted Wavefront Error
    λ/4 at 632.8 nm
  • Principal Transmittance(%)
    95%
  • Extinction Ratio
    10000:1
  • Wedge Angle Tolerance
    ±10 arcmin
  • Clear Aperture
    90%
  • Substrate/Material
    UV Fused Silica
  • Surface Quality
    20-10 Scratch-Dig
  • Diameter Tolerance
    +0.0/-0.2 mm
  • Thickness Tolerance
    ±0.4 mm
