VQ2 060 7500 4

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Gradient Lens Corporation.

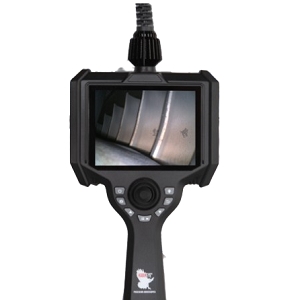

The VQ2 060 7500 4 from Gradient Lens Corporation is a Borescope with Depth of Field(DOF) 8 mm to infinity, Viewing Angle 0 Degrees, Field of View(FOV) 80 Degree, Probe / Insertion Tube Temperature -20 to 60 Degree C, Operating Temperature -10 to 50 Degree C (Display unit). More details for VQ2 060 7500 4 can be seen below.

Product Specifications

Product Details

  • Part Number
    VQ2 060 7500 4
  • Manufacturer
    Gradient Lens Corporation

Connections & Interface

  • Interface
    HDMI, USB, Micro-SD Card

General Parameters

  • Magnification / Zoom
    6x
  • Direction of View(DOV)
    Straight Forward / Direct (0°)
  • Depth of Field(DOF)
    8 mm to infinity
  • Viewing Angle
    0 Degrees
  • Field of View(FOV)
    80 Degree
  • Articulation Control
    4 Way
  • Articulation Angle
    90 Degree
  • Battery
    Lithium-Ion
  • Type
    Videoscope
  • Battery Operating Hours
    4 Hours
  • Camera
    1 MP Color CMOS
  • Display
    5 Inch HD Display
  • Illumination
    Integrated White LED
  • Ingress Protection
    IP67 (Sheath), IP54 (Host)
  • Material
    Tungsten Braid
  • Photo Format
    JPEG
  • Recording Media
    JPEG, MPEG4
  • Sheath
    Tungsten Braid
  • Video Format
    MPEG 4

Environmental Conditions

  • Probe / Insertion Tube Temperature
    -20 to 60 Degree C
  • Operating Temperature
    -10 to 50 Degree C (Display unit)
  • Storage Temperature
    -20 to 60 Degree C

Physical Properties

  • Probe / Insertion Tube Diameter
    6.0 mm (.236 Inches)
  • Probe / Insertion Tube Length
    7.5 m (24 feet 6 Inches)
  • Probe / Insertion Tube Length
    7.5 m (24 feet 6 Inches)
  • Insertion Cable Length
    7.5 m (24 feet 6 Inches)
  • Weight
    2.2 lb
