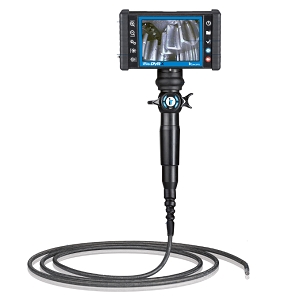

iRis DVR X

Borescope by IT Concepts
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IT Concepts.

The iRis DVR X from IT Concepts is a Borescope with Field of View(FOV) 90 Degree, Probe / Insertion Tube Temperature -25 to 80 Degree C, 140 Degree C @ <5 mins, Operating Temperature -25 to 46 Degree C, Storage Temperature -25 to 60 Degree C, Probe / Insertion Tube Diameter 4 to 6 mm. More details for iRis DVR X can be seen below.

Product Specifications

Product Details

  • Part Number
    iRis DVR X
  • Manufacturer
    IT Concepts
  • Description
    4 to 6 mm Portable Videoscope System

Connections & Interface

  • Interface
    BNC

Electrical Specifications

  • DC Power Supply
    12 V

General Parameters

  • Magnification / Zoom
    16x
  • Field of View(FOV)
    90 Degree
  • Articulation Control
    4 Way
  • Articulation Angle
    360 Degree
  • Battery
    Rechargeable Li-ion battery
  • Type
    Videoscope, Flexible Borescope
  • Display
    5.0 Inch (12.7 cm) TFT colour
  • LED Life
    approx. 50000 h
  • Material
    Tungsten Braid
  • Operating System
    Real-time operating system, with on-screen menu
  • Resolution
    640(H) x 480(V)
  • Video Format
    VGA, MPEG4 (.avi)

Environmental Conditions

  • Probe / Insertion Tube Temperature
    -25 to 80 Degree C, 140 Degree C @ <5 mins
  • Waterproof
    Yes
  • Operating Temperature
    -25 to 46 Degree C
  • Storage Temperature
    -25 to 60 Degree C

Physical Properties

  • Probe / Insertion Tube Diameter
    4 to 6 mm
  • Probe / Insertion Tube Length
    1.5 to 7.5 m
  • Probe / Insertion Tube Length
    1.5 to 7.5 m
  • Dimensions
    180 x 105 x 45 mm
  • Weight
    1.35 kg
  • Working Length
    1.5 to 7.5 m
