7E053VL-30080

Borescope by Lenox Instrument
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lenox Instrument.

The 7E053VL-30080 from Lenox Instrument is a Borescope with Viewing Angle 0 Degrees, 90 Degrees, Field of View(FOV) 80 Degree, Probe / Insertion Tube Diameter 5.3 mm, Probe / Insertion Tube Length 3 m / 9.8 feet / 248.92 mm, Probe / Insertion Tube Length 3 m / 9.8 feet / 248.92 mm. More details for 7E053VL-30080 can be seen below.

Product Specifications

Product Details

  • Part Number
    7E053VL-30080
  • Manufacturer
    Lenox Instrument
  • Description

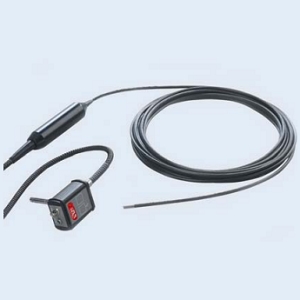

    Flexible LongRange Videoscope - 5.3mm, 9.8 ft length w/80 degree non-Articulation

Electrical Specifications

  • DC Power Supply
    12 VDC

General Parameters

  • Direction of View(DOV)
    Straight Forward / Direct (0°), Side / Right Angle (90°)
  • Viewing Angle
    0 Degrees, 90 Degrees
  • Field of View(FOV)
    80 Degree
  • Type
    Flexible LongRange Videoscope
  • Display
    8 Inch LCD color monitor
  • Material
    Polyurethane sheathing or impregnated tungsten braiding
  • Warranty
    2 years

Applications

  • Application
    Aircraft Engines & Turbines, Process Tanks and Vessels, Hydraulic Cylinders, Boiler Tube Inspection, Remote Visual Inspection (RVT), Covert Inspection, Airframes, Tubing and Pipe Inspection, Borescope Inspection, Power Generation Equipment, Heat Exchanger

Physical Properties

  • Probe / Insertion Tube Diameter
    5.3 mm
  • Probe / Insertion Tube Length
    3 m / 9.8 feet / 248.92 mm
  • Probe / Insertion Tube Length
    3 m / 9.8 feet / 248.92 mm
  • Flexible Length
    9.8 feet
  • Insertion Cable Length
    9.8 feet
