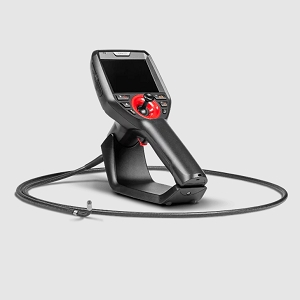

VOYAGER C40

Borescope by MEDIT INC
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to MEDIT INC.

The VOYAGER C40 from MEDIT INC is a Borescope with Depth of Field(DOF) 5 to 80 mm, Field of View(FOV) 85 Degree, 120 Degree, Operating Temperature -10 to 50 Degree C, Storage Temperature -20 to 60 Degree C, Probe / Insertion Tube Diameter 2 to 6 mm. More details for VOYAGER C40 can be seen below.

Product Specifications

Product Details

  • Part Number
    VOYAGER C40
  • Manufacturer
    MEDIT INC

Connections & Interface

  • Interface
    HDMI

Electrical Specifications

  • DC Power Supply
    4.2 V

General Parameters

  • Magnification / Zoom
    4x, 8x
  • Depth of Field(DOF)
    5 to 80 mm
  • Field of View(FOV)
    85 Degree, 120 Degree
  • Articulation Control
    All Way (Probe)
  • Articulation Angle
    360 Degree (Probe)
  • Battery
    18650 Rechargeable lithium-ion
  • Type
    Videoscope
  • Brightness Control
    Manual 7 Level adjustable
  • Camera
    CMOS
  • Display
    3.5 inch TFT
  • Illumination
    Rear-mounted Fiber/front LED Light
  • Illumination Output
    2000 to 60000 LX
  • Ingress Protection
    IP55 (Host), IP67 (Probe)
  • Material
    Titanium alloy (Probe)
  • Memory
    8G capacity TF card, Maximum support 32G
  • Pixel
    1600000 pixels to 1 MP
  • Resolution
    640(H) x 480(V), 1200(H) x 720(V)

Environmental Conditions

  • Waterproof
    Yes
  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -20 to 60 Degree C
  • Operating Humidity
    15 to 90%

Applications

  • Application
    Industrial Endoscope Application

Physical Properties

  • Probe / Insertion Tube Diameter
    2 to 6 mm
  • Probe / Insertion Tube Length
    1 to 3 m
  • Probe / Insertion Tube Length
    1 to 3 m
  • Dimensions
    240 x 102 x 126 mm (Host), 411 x 321 x 165 mm (Instrument)
  • Flexible Length
    1 to 3 m
  • Weight
    0.55 kg
