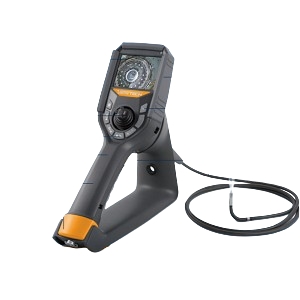

VJ-3 3.9mm

Borescope by ViewTech Borescopes
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to ViewTech Borescopes.

The VJ-3 3.9mm from ViewTech Borescopes is a Borescope with Depth of Field(DOF) 7 to 80 mm, Field of View(FOV) 100 Degree x 75 Degree, Probe / Insertion Tube Temperature -10 to 50 Degree C, Operating Temperature -20 to 50 Degree C(Base Unit), Probe / Insertion Tube Diameter 3.9 mm. More details for VJ-3 3.9mm can be seen below.

Product Specifications

Product Details

  • Part Number
    VJ-3 3.9mm
  • Manufacturer
    ViewTech Borescopes

Connections & Interface

  • Interface
    SD card, micro USB, HDMI

Electrical Specifications

  • AC Power supply
    100 to 240 VAC
  • Input Power Supply(AC)
    100 to 240 V

General Parameters

  • Magnification / Zoom
    4X
  • Depth of Field(DOF)
    7 to 80 mm
  • Field of View(FOV)
    100 Degree x 75 Degree
  • Articulation Control
    Joystick
  • Articulation Angle
    360 Degree (around), 180±10 Degree (backward)
  • Battery
    One 18650B PCB-Protected Li-ion battery
  • Type
    Videoscope
  • Battery Operating Hours
    <4 Hours
  • Brightness Control
    6-step LED brightness
  • Data I/O Ports
    SD card, micro USB, TV Out (NTSC / PAL) or HDMI
  • Display
    3.5 Inch IPS anti-glare LCD
  • Illumination
    4 Super high-intensity white LEDs
  • Illumination Output
    <6,000 lux
  • Ingress Protection
    IP67 (Insertion Tube), IP54 (Base Unit)
  • Material
    Tungsten EasyGlide
  • Photo Format
    JPEG
  • Pixel
    450000 pixels
  • Resolution
    640(H) x 480(V)
  • Video Format
    AVI
  • Video Output
    NTSC/PAL

Environmental Conditions

  • Probe / Insertion Tube Temperature
    -10 to 50 Degree C
  • Operating Temperature
    -20 to 50 Degree C(Base Unit)

Physical Properties

  • Probe / Insertion Tube Diameter
    3.9 mm
  • Probe / Insertion Tube Length
    1.5 m, 3 m
  • Probe / Insertion Tube Length
    1.5 m, 3 m
  • Dimensions
    13.0 x 12.0 x 4.5 Inches
  • Insertion Cable Length
    1.5 m, 3 m
  • Weight
    2.2 lbs, 1 kg
