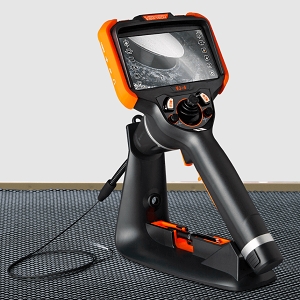

VJ-4 2.2mm

Borescope by ViewTech Borescopes
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to ViewTech Borescopes.

The VJ-4 2.2mm from ViewTech Borescopes is a Borescope with Depth of Field(DOF) 3 to 50 mm, Viewing Angle 120 Degree, Operating Temperature -20 to 50 Degree C, Storage Temperature -20 to 70 Degree C, Probe / Insertion Tube Diameter 2.2 mm. More details for VJ-4 2.2mm can be seen below.

Product Specifications

Product Details

  • Part Number
    VJ-4 2.2mm
  • Manufacturer
    ViewTech Borescopes

General Parameters

  • Magnification / Zoom
    2.5x
  • Direction of View(DOV)
    Retrograde (>110°)
  • Depth of Field(DOF)
    3 to 50 mm
  • Viewing Angle
    120 Degree
  • Articulation Control
    Joystick
  • Articulation Angle
    180 Degree
  • Battery
    Two 18650B PCB-Protected Lithium-ion batteries
  • Type
    Videoscope
  • Battery Operating Hours
    <3 Hours
  • Brightness Control
    10-step LED brightness
  • Data I/O Ports
    SD card, HDMI, USB Type C
  • Display
    5.5 Inch OLED touch screen
  • Illumination
    4 Super high-intensity white LEDs
  • Illumination Output
    <8000 lux
  • Ingress Protection
    IP67 (Insertion Tube)
  • Material
    Tungsten EasyGlide
  • Photo Format
    BMP, PNG, JPG
  • Pixel
    160000 pixels
  • Video Format
    AVI, MP4

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -20 to 70 Degree C

Physical Properties

  • Probe / Insertion Tube Diameter
    2.2 mm
  • Probe / Insertion Tube Length
    1 m, 1.5 m, 2 m
  • Probe / Insertion Tube Length
    1 m, 1.5 m, 2 m
  • Dimensions
    13.6 x 6.2 x 7.3 Inches
  • Insertion Cable Length
    1 m, 1.5 m, 2 m
  • Weight
    2.09 lbs, .95 kg
