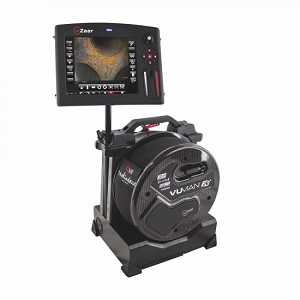

VUMAN E3/E3+

Borescope by viZaar
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to viZaar.

The VUMAN E3/E3+ from viZaar is a Borescope with Depth of Field(DOF) 3 mm to Infinity, Viewing Angle 0 Degree, Field of View(FOV) 45 Degree, 70 Degree, 60 Degree, Operating Temperature -10 to 48 Degree C, Storage Temperature -25 to 65 Degree C. More details for VUMAN E3/E3+ can be seen below.

Product Specifications

Product Details

  • Part Number
    VUMAN E3/E3+
  • Manufacturer
    viZaar

Connections & Interface

  • Interface
    USB 3.0

Electrical Specifications

  • DC Power Supply
    12 V
  • Input Power Supply(AC)
    100 to 240 VAC, 50 to 60 Hz, max. 240 Watt

General Parameters

  • Direction of View(DOV)
    Straight Forward / Direct (0°)
  • Depth of Field(DOF)
    3 mm to Infinity
  • Viewing Angle
    0 Degree
  • Field of View(FOV)
    45 Degree, 70 Degree, 60 Degree
  • Articulation Control
    Joystick, Up/Down/Left/Right
  • Articulation Angle
    100 Degree, 120 Degree, 160 Degree, 140 Degree
  • Battery
    NiMH modular battery
  • Type
    Videoscope
  • Display
    10.4 Inch touch-display
  • Illumination
    Color temperature: 6.1 mm: 5500 K, 8.4 mm: 5000 K
  • Material
    Tungsten Braid, Polyurethane probe, Stainless Steel
  • Memory
    10 GB SSD (E3), 80 GB SSD (E3+)
  • Pixel
    470 pixels, 440 pixels
  • Resolution
    1440(H) x 1080(V)
  • Warranty
    Lifetime
  • Video Output
    HDMI
  • Note
    Video Input: PAL / NTSC, Composite, S-Video (E3+)

Environmental Conditions

  • Waterproof
    Yes
  • Operating Temperature
    -10 to 48 Degree C
  • Storage Temperature
    -25 to 65 Degree C

Applications

  • Application
    Plant and pipeline constructions, welds, heat tinting, corrosion, erosion, foreign object search and retrieval, (in combination with retrieval tools), Turbines, pumps, gears, generators, cavitation, erosion, salinisation, surfaces, discolouration, cracks,

Physical Properties

  • Probe / Insertion Tube Diameter
    6.1 mm, 8.4 mm, 12.7 mm
  • Probe / Insertion Tube Length
    20 m (Probe)
  • Probe / Insertion Tube Length
    20 m (Probe)
  • Dimensions
    340 x 425 x 280 mm (W x H x D)
  • Weight
    8.2 kg
