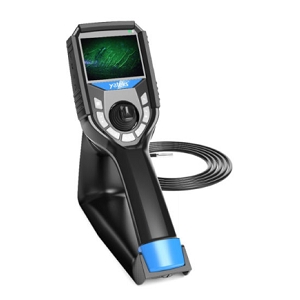

M-UV Series

Borescope by Yateks
Request Quote

Note: Your Quotation Request will be directed to Yateks.

The M-UV Series from Yateks is a Borescope with Depth of Field(DOF) 3 to 50 mm, Field of View(FOV) 80 Degree, Probe / Insertion Tube Temperature -20 to 70 Degree C, Operating Temperature -10 to 50 Degree C (Base unit), Probe / Insertion Tube Diameter 3.9 to 6 mm. More details for M-UV Series can be seen below.

Product Specifications

Product Details

  • Part Number
    M-UV Series
  • Manufacturer
    Yateks
  • Description
    360 Degree Articulation Ultraviolet Industrial Borescope

Connections & Interface

  • Interface
    HDMI, USB, SD card

General Parameters

  • Depth of Field(DOF)
    3 to 50 mm
  • Field of View(FOV)
    80 Degree
  • Articulation Control
    Joystick, 4 Way
  • Articulation Angle
    360 Degree
  • Battery
    One 18650 Li-battery (Replaceable)
  • Type
    Videoscope
  • Brightness Control
    6-level
  • Data I/O Ports
    SD card, headset, HDMI, Micro USB(charging and data reading)
  • Display
    3.5 Inch LCD
  • Ingress Protection
    IP54 (Base unit), IP67 (Probe)
  • Material
    Tungsten Braid
  • Memory
    16G
  • Photo Format
    JPEG/JPG
  • Pixel
    450000 pixels
  • Resolution
    640(H) x 480(V)
  • Video Format
    AVI
  • Note
    Standby time: >4 hours

Environmental Conditions

  • Probe / Insertion Tube Temperature
    -20 to 70 Degree C
  • Waterproof
    Yes
  • Operating Temperature
    -10 to 50 Degree C (Base unit)
  • Operating Humidity
    0.9

Applications

  • Application
    Industrial, Coating reverse optimization, anti-terrorist, hazardous substance searching

Physical Properties

  • Probe / Insertion Tube Diameter
    3.9 to 6 mm
  • Probe / Insertion Tube Length
    1, 1.5, 2, 3 m
  • Probe / Insertion Tube Length
    1 m, 1.5 m, 2 m, 3 m
  • Dimensions
    315 x 103 x 173 mm
  • Weight
    0.75 kg
