M210FN-WLS | 11220010

Borescope by Yateks
Request Quote

Note: Your Quotation Request will be directed to Yateks.

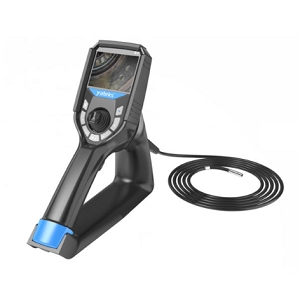

The M210FN-WLS | 11220010 from Yateks is a Borescope with Depth of Field(DOF) 3 to 50 mm, Viewing Angle 120 Degree, Probe / Insertion Tube Temperature -20 to 50 Degree C, Operating Temperature -10 to 50 Degree C (Base unit), Probe / Insertion Tube Diameter 2.2 mm. More details for M210FN-WLS | 11220010 can be seen below.

Product Specifications

Product Details

  • Part Number
    M210FN-WLS | 11220010
  • Manufacturer
    Yateks
  • Description
    1 m Industrial Videoscope with Angle of view 120 Degree

Connections & Interface

  • Interface
    HDMI, USB, SD card

General Parameters

  • Magnification / Zoom
    4x
  • Direction of View(DOV)
    Retrograde (>110°)
  • Depth of Field(DOF)
    3 to 50 mm
  • Viewing Angle
    120 Degree
  • Articulation Control
    Joystick
  • Articulation Angle
    150±10 Degree
  • Battery
    18650 Li-ion battery (Replaceable)
  • Type
    Videoscope
  • Brightness Control
    6-level
  • Data I/O Ports
    SD card, headset, HDMI, Micro USB(charging and data reading)
  • Display
    3.5 inch LCD
  • Illumination Output
    3500 lux
  • Ingress Protection
    IP54 (Base unit), IP67 (Probe)
  • Material
    Tungsten Braid
  • Memory
    16G
  • Operating System
    Real-time multitasking operation system
  • Photo Format
    JPEG/JPG
  • Resolution
    640(H) x 480(V)
  • Video Format
    AVI
  • Note
    Standby time: >4 hours

Environmental Conditions

  • Probe / Insertion Tube Temperature
    -20 to 50 Degree C
  • Waterproof
    Yes
  • Operating Temperature
    -10 to 50 Degree C (Base unit)
  • Operating Humidity
    0.9

Applications

  • Application
    Industrial

Physical Properties

  • Probe / Insertion Tube Diameter
    2.2 mm
  • Probe / Insertion Tube Length
    1 m
  • Probe / Insertion Tube Length
    1 m
  • Dimensions
    315 x 103 x 173 mm
  • Weight
    0.75 kg
