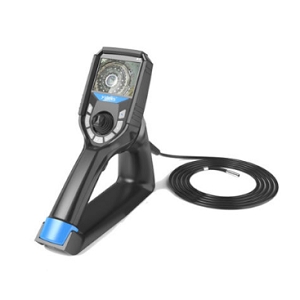

M615FM | 11161015

Borescope by Yateks
Request Quote

Note: Your Quotation Request will be directed to Yateks.

The M615FM | 11161015 from Yateks is a Borescope with Depth of Field(DOF) 7 to 80 mm, Viewing Angle 80 Degree, Probe / Insertion Tube Temperature -20 to 70 Degree C, Operating Temperature -10 to 50 Degree C (Monitor), Probe / Insertion Tube Diameter 6 mm. More details for M615FM | 11161015 can be seen below.

Product Specifications

Product Details

  • Part Number
    M615FM | 11161015
  • Manufacturer
    Yateks
  • Description
    1.5 m Articulating Borescope with Depth of Field 7 to 80 mm

Connections & Interface

  • Interface
    TV-OUT, USB

General Parameters

  • Magnification / Zoom
    5x
  • Direction of View(DOV)
    Forward Oblique (0°-90°)
  • Depth of Field(DOF)
    7 to 80 mm
  • Viewing Angle
    80 Degree
  • Articulation Control
    Joystick
  • Articulation Angle
    150±10 Degree
  • Battery
    Li on Battery 18650 x1
  • Type
    Videoscope
  • Brightness Control
    6 Degrees for brightness adjustment
  • Data I/O Ports
    SD card, headset, TV-OUT, Micro USB(charging and data reading)
  • Display
    3.5 Inch TFT LCD
  • Illumination
    LED
  • Illumination Output
    20000 lux
  • Ingress Protection
    IP54 (Monitor), IP67 (Probe)
  • Internal Memory
    16G (UP TO 32G)
  • Operating System
    Real-time multitasking operation system
  • Photo Format
    JPEG, JPG
  • Resolution
    720(H) x 576(V)
  • Video Format
    AVI
  • Note
    Standby time: 4 hours

Environmental Conditions

  • Probe / Insertion Tube Temperature
    -20 to 70 Degree C
  • Waterproof
    Yes
  • Operating Temperature
    -10 to 50 Degree C (Monitor)
  • Operating Humidity
    0.9

Applications

  • Application
    Inspection for aviation, automobile, watercraft, electric and chemical.

Physical Properties

  • Probe / Insertion Tube Diameter
    6 mm
  • Probe / Insertion Tube Length
    1.5 m
  • Probe / Insertion Tube Length
    1.5 m
  • Dimensions
    315 x 111 x 173 mm
  • Weight
    0.75 kg
