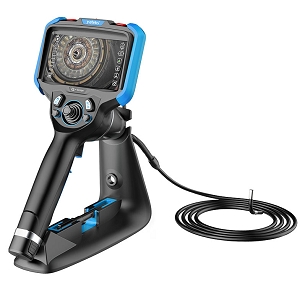

Q Series

Borescope by Yateks

Note: Your Quotation Request will be directed to Yateks.

The Q Series from Yateks is a Borescope with Depth of Field(DOF) 3 mm to Infinity, Viewing Angle 90 Degree, 100 Degree, 110 Degree, 120 Degree, Probe / Insertion Tube Temperature -20 to 70 Degree C, Operating Temperature -20 to 50 Degree C (Monitor), Probe / Insertion Tube Diameter 2.2 to 6 mm. More details for Q Series can be seen below.

Product Specifications

Product Details

  • Part Number
    Q Series
  • Manufacturer
    Yateks
  • Description
    2.2 to 6 mm HD Portable Industrial Borescope with Depth of Field 3 mm to Infinity

Connections & Interface

  • Interface
    HDMI, USB, SD card

General Parameters

  • Magnification / Zoom
    10x
  • Direction of View(DOV)
    Retrograde (>110°), Side / Right Angle (90°)
  • Depth of Field(DOF)
    3 mm to Infinity
  • Viewing Angle
    90 Degree, 100 Degree, 110 Degree, 120 Degree
  • Articulation Control
    Joystick
  • Articulation Angle
    360 Degree
  • Battery
    Two 18650 Lithium battery (Rechargeable)
  • Type
    Flexible Borescope
  • Brightness Control
    10 Degrees
  • Data I/O Ports
    SD card port, HDMI video port, Type C charging port, USB port, software update port
  • Display
    5.5 Inch OLED touch screen
  • Illumination
    White LED
  • Illumination Output
    8000 to 100000 lux
  • Ingress Protection
    IP67 (Probe)
  • Material
    Tungsten Braid
  • Memory
    32G
  • Photo Format
    BMP, PNG, JPG
  • Pixel
    45k to megapixels
  • Resolution
    1920(H) x 1080(V)
  • Video Format
    AVI, MP4
  • Note
    Standby time: >4 hours

Environmental Conditions

  • Probe / Insertion Tube Temperature
    -20 to 70 Degree C
  • Waterproof
    Yes
  • Operating Temperature
    -20 to 50 Degree C (Monitor)
  • Operating Humidity
    0.95

Applications

  • Application
    Power generation, Automotive technology and transportation , Process industry , Aviation

Physical Properties

  • Probe / Insertion Tube Diameter
    2.2 to 6 mm
  • Probe / Insertion Tube Length
    1 to 5 m
  • Probe / Insertion Tube Length
    1 to 5 m
  • Dimensions
    345 x 157 x 185 mm
  • Weight
    950 g
