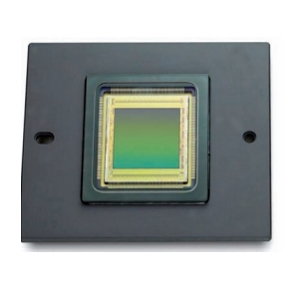

Sci-CMOS 2020

CMOS Image Sensor by ANDANTA
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to ANDANTA.

The Sci-CMOS 2020 from ANDANTA is a CMOS Image Sensor with Mega Pixels 4 MP, Frame Rate 47 to 376 Frames/sec, Dynamic Range 70 to 88 dB, SNR >46 dB, Supply Voltage 3.3 V / 1.8 V. More details for Sci-CMOS 2020 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Sci-CMOS 2020
  • Manufacturer
    ANDANTA
  • Description
    4MP Scientific Image Sensor for High Speed Imaging

General Parameters

  • Resolution
    2048 (H) x 2048 (V)
  • Mega Pixels
    4 MP
  • Optical Format
    1.2 Inch
  • Shutter Type
    Rolling Shutter, Global Shutter
  • Frame Rate
    47 to 376 Frames/sec
  • Pixel
    4 MP
  • Pixel Size
    6.5 µm x 6.5 µm
  • Dynamic Range
    70 to 88 dB
  • SNR
    >46 dB
  • ADC Resolution
    10 / 12 Bit
  • Supply Voltage
    3.3 V / 1.8 V
  • Power Consumption
    0.8 to 1.5 W
  • Package Type
    PGA
  • Note
    Full well charge: >48 ke-, Dark noise: <2 to 6 e-, Quantum efficiency: 62 %, Dark current: <1 e-/p/s

Connections & Interface

  • Interface
    LVDS, SPI, PLL

Applications

  • Application
    Cooled Scientific Imaging, High Speed Imaging, Machine Vision, and High-end Surveillance

Physical Properties

  • Package
    152 Pins PGA

Temperature

  • Operating Temperature
    -55 to 85 Degree C
