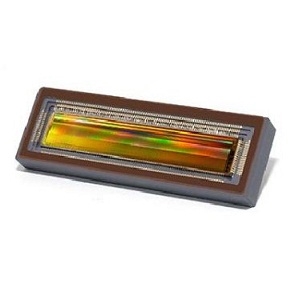

GL0816

CMOS Image Sensor by Gpixel Microelectronics Inc.

Note: Your Quotation Request will be directed to Gpixel Microelectronics Inc..

The GL0816 from Gpixel Microelectronics Inc. is a CMOS Image Sensor with Mega Pixels 0.13 MP, Data Rate 52.8 Gbps. More details for GL0816 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    GL0816
  • Manufacturer
    Gpixel Microelectronics Inc.
  • Description
    8322 x 16 Linear CMOS Image Sensor

General Parameters

  • Resolution
    8322 (H) x 16 (V)
  • Mega Pixels
    0.13 MP
  • Package Type
    PGA
  • Chroma
    Monochrome, RGBW
  • Shutter Type
    Global Shutter
  • ADC Resolution
    8 Bit, 10 Bit, 11 Bit
  • Pixel Size
    5 x 5 um
  • Pixel
    0.13 MP
  • Line Rate
    100 kHz, 120 kHz, 200 kHz
  • Imaging Area
    41.61 mm x 0.08 mm
  • Data Rate
    52.8 Gbps
  • Power Consumption
    4 W

Applications

  • Application
    Film Inspection, Printing Inspection, Label Inspection, PCB inspection

Physical Properties

  • Package
    258 pins micro-PGA

Technical Documents

Click to view more product details on manufacturer's website
