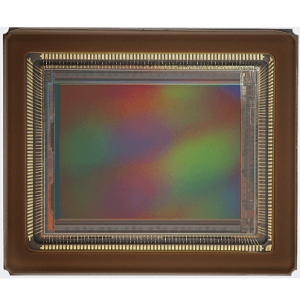

GMAX3412

CMOS Image Sensor by Gpixel Microelectronics Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Gpixel Microelectronics Inc..

The GMAX3412 from Gpixel Microelectronics Inc. is a CMOS Image Sensor with Mega Pixels 12 MP, Frame Rate 30 to 128 fps, Data Rate 4.8 to 19.2 Gbps, Dynamic Range 67.9 dB, SNR 40 dB. More details for GMAX3412 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    GMAX3412
  • Manufacturer
    Gpixel Microelectronics Inc.
  • Description
    12 MP Global Shutter CMOS Sensor with LGA Package

General Parameters

  • Resolution
    4096 (H) x 3072 (V)
  • Mega Pixels
    12 MP
  • Optical Format
    1.1 Inches
  • Shutter Type
    Global Shutter
  • Frame Rate
    30 to 128 fps
  • Pixel
    12 MP
  • Pixel Size
    3.4 x 3.4 µm
  • Active Array
    4096 (H) x 3072 (V)
  • Imaging Area
    14 x 10.5 mm (photosensitive area)
  • Data Rate
    4.8 to 19.2 Gbps
  • Dynamic Range
    67.9 dB
  • Chroma
    Monochrome, Near-Infrared, RGB, Color
  • SNR
    40 dB
  • ADC Resolution
    10 Bit, 12 Bit
  • Type
    Area Image Sensor
  • Supply Voltage
    3.3 V, 3.6 V (Analog), 1.8 to 3.3 V (IO), 1.2 V (Digital)
  • Power Consumption
    <1.5 W
  • Package Type
    LGA

Connections & Interface

  • Interface
    Sub-LVDS, MIPI

Applications

  • Application
    Automation & Inspection, Intelligent Transport Systems

Physical Properties

  • Package
    176-Pins LGA
  • Dimensions
    22.93 x 19.39 mm
