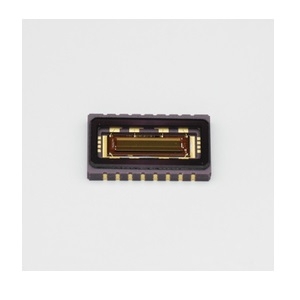

S9227-04

CMOS Image Sensor by Hamamatsu Photonics

Note: Your Quotation Request will be directed to Hamamatsu Photonics.

The S9227-04 from Hamamatsu Photonics is a CMOS Image Sensor with Supply Voltage 4.75 to 5.25 V, Data Rate 5 MHz (Video), Clock Frequency 50 kHz to 5 MHz, Operating Temperature -5 to 85 Degree C, Storage Temperature -10 to 85 Degree C. More details for S9227-04 can be seen below.

Product Specifications View similar products

Product Details

  • Part Number
    S9227-04
  • Manufacturer
    Hamamatsu Photonics
  • Description
    Video data rate: 5 MHz max., simultaneous charge integration CMOS Linear Image Sensor

General Parameters

  • Resolution
    1 (H) x 512 (V)
  • Supply Voltage
    4.75 to 5.25 V
  • Package Type
    Ceramic
  • Pixel Size
    12.5 µm x 250 µm
  • Line Rate
    9434 lines/s
  • Imaging Area
    6.4 mm (Length)
  • Type
    Linear Image Sensor
  • Data Rate
    5 MHz (Video)
  • Clock Frequency
    50 kHz to 5 MHz
  • Note
    Spectral response range: 400 to 1000 nm

Applications

  • Application
    Position Detection, Image Reading

Physical Properties

  • Package
    Surface mount, Ceramic

Temperature

  • Operating Temperature
    -5 to 85 Degree C
  • Storage Temperature
    -10 to 85 Degree C
