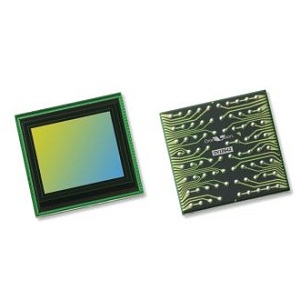

OV10642

CMOS Image Sensor by OmniVision Technologies
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OmniVision Technologies.

The OV10642 from OmniVision Technologies is a CMOS Image Sensor with Mega Pixels 1.3 MP, Frame Rate 60 fps, Dynamic Range 120 dB, Clock Frequency 6 to 27 MHz, Supply Voltage 1.7 to 3.47 V. More details for OV10642 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    OV10642
  • Manufacturer
    OmniVision Technologies
  • Description
    RCCC CMOS 1.3-Megapixel (1280x1080) High Dynamic Range (HDR) High Definition Image Sensor

General Parameters

  • Resolution
    1280(H) x 1080(V)
  • Mega Pixels
    1.3 MP
  • Optical Format
    1/2.56 Inch
  • Shutter Type
    Rolling Shutter
  • Frame Rate
    60 fps
  • Pixel
    1.3 MP
  • Pixel Size
    4.2 µm x 4.2 µm
  • Active Array
    1280(H)µm x 1080(V)µm
  • Imaging Area
    5410 x 4570 µm
  • Dynamic Range
    120 dB
  • Chroma
    RCCC
  • Type
    Area Scan Sensor, Digital Sensor
  • Clock Frequency
    6 to 27 MHz
  • Supply Voltage
    1.7 to 3.47 V
  • Package Type
    CSP
  • Note
    Ray Angle: 9 Degree

Connections & Interface

  • Interface
    MIPI, LVDS, DVP

Applications

  • Application
    Automotive, High beam assist, stereo sensing, traffic light recognition, rear view camera, lane departure warning/lane keep assist, pedestrian detection, traffic sign recognition, autonomous driving

Physical Properties

  • Dimensions
    7430 µm x 7190 um

Temperature

  • Operating Temperature
    -40 to 105 Degree C
