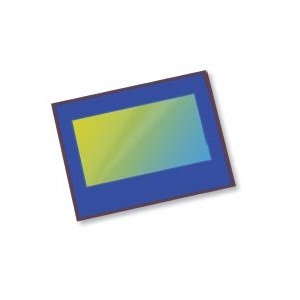

OV10823

CMOS Image Sensor by OmniVision Technologies
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OmniVision Technologies.

The OV10823 from OmniVision Technologies is a CMOS Image Sensor with Mega Pixels 10 MP, Frame Rate 30 to 60 fps, Sensitivity 1010 mV/lux-sec, Dynamic Range 71.5 dB, SNR 36.4 dB. More details for OV10823 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    OV10823
  • Manufacturer
    OmniVision Technologies
  • Description
    Color CMOS 10-megapixel (4320x2432) Image Sensor with OmniBSI-2™ Technology

General Parameters

  • Resolution
    4320(H) x 2432(V)
  • Mega Pixels
    10 MP
  • Optical Format
    1/2.6 Inch
  • Shutter Type
    Rolling Shutter
  • Frame Rate
    30 to 60 fps
  • Pixel
    10 MP
  • Pixel Size
    1.4 µm x 1.4 µm
  • Active Array
    4320(H)µm x 2432(V)µm
  • Imaging Area
    6092.8 x 3449.6 µm
  • Sensitivity
    1010 mV/lux-sec
  • Dynamic Range
    71.5 dB
  • Chroma
    RGB, Bayer
  • SNR
    36.4 dB
  • Type
    Area Scan Sensor, Digital Sensor
  • Clock Frequency
    6 to 27 MHz
  • Supply Voltage
    1.2 to 3 V
  • Package Type
    CSP
  • Note
    Dark Current: 10 e-/s, Ray Angle: 0 Degree

Connections & Interface

  • Interface
    MIPI

Applications

  • Application
    Security and Surveillance

Physical Properties

  • Dimensions
    7630 µm x 5980 µm

Temperature

  • Operating Temperature
    -30 to 70 Degree C
